Steel High Mast Poles
Steel High Mast Poles
Our high-performance high mast poles are engineered from high-tensile Q345/Q460 steel. Featuring a motorized raising and lowering system and hot-dip galvanization (ISO 1461), they deliver exceptional wind resistance and 25+ years of maintenance-free service in major infrastructure projects.
Get Technical DrawingsTechnical Specifications
Height Range
15 Meters – 45 Meters
Shaft Design
Polygonal Multi-Section (Slip-fit jointing)
System Type
Automatic Motorized Raising & Lowering System
Material
Q345B / Q460 High-Strength Steel
Surface Protection
Hot-dip Galvanized to ASTM A123 / ISO 1461
Wind Load Rating
Up to 160 km/h or customized to local requirements
High Mast Poles for Safe, Wind-Resistant Area Lighting Projects
JOYIME high mast poles are engineered for large-area lighting projects where safety, structural reliability, and efficiency are critical. We design these solutions for highways, ports, airports, and sports facilities.
Each mast supports powerful luminaire clusters at elevated mounting heights. Our tapered steel shafts and reinforced base assemblies are designed for wind resistance up to 160 km/h. This helps reduce vibration, deformation, and long-term installation risks.
We offer custom manufacturing from 15m to 35m. Every specification is optimized according to your wind load, lighting design, and local project requirements worldwide.
Technical Specifications of High Mast Poles (15m-35m)
| Height | Shaft Type | Top Diameter | Bottom Diameter | Wall Thickness | Base Plate | Anchor Bolts | Wind Resistance | Typical Application |
|---|---|---|---|---|---|---|---|---|
| 15m | Conical / Octagonal | 160–220mm | 360–450mm | 5–6mm | 700 × 700 × 25mm | M30 × 8 pcs | Up to 160 km/h | Parking areas, small logistics yards, industrial roads |
| 18m | Conical / Octagonal | 180–230mm | 420–500mm | 6mm | 800 × 800 × 25mm | M30/M33 × 8 pcs | Up to 160 km/h | Warehouses, road junctions, terminal yards |
| 20m | Conical / Octagonal | 200–240mm | 460–560mm | 6–8mm | 850 × 850 × 30mm | M33 × 8 pcs | Up to 160 km/h | Highways, ports, large parking lots |
| 25m | Multi-section Conical / Octagonal | 220–260mm | 520–650mm | 6–8–10mm | 950 × 950 × 35mm | M36 × 8/12 pcs | Up to 160 km/h | Airports, container yards, toll plazas |
| 30m | Multi-section Conical / Octagonal | 240–280mm | 600–760mm | 8–10mm | 1100 × 1100 × 40mm | M39 × 12 pcs | Up to 160 km/h | Seaports, large industrial zones, stadium surroundings |
| 35m | Heavy-Duty Multi-section Mast | 260–320mm | 700–900mm | 8–10–12mm | 1200 × 1200 × 45mm | M42 × 12/16 pcs | Up to 160 km/h | Airport aprons, large transport hubs, high-output area lighting |
Note for High Mast Poles page copy:
All dimensions are reference ranges for B2B project evaluation. Final pole diameter, plate thickness, flange size, anchor bolt layout, and foundation interface should be confirmed according to wind speed, soil condition, luminaire quantity, projected area, lighting layout, and local engineering standards.
Key Components of High Mast Poles

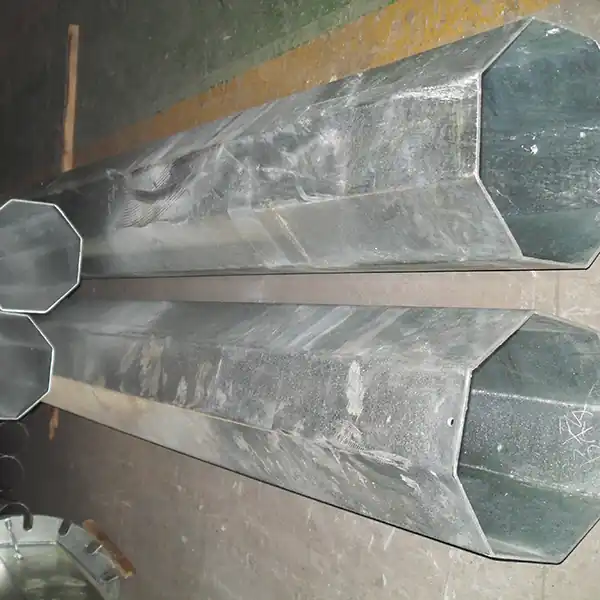

High Mast Poles Tapered Steel Shaft
Manufactured from high-tensile Q345B/Q235B steel, our shafts feature a multi-section telescopic fit design. This ensures maximum structural integrity and ease of transportation for heights up to 35m+.
Precision Raising & Lowering System
Equipped with a heavy-duty electric winch and stainless steel wire ropes, our system allows for safe luminaire maintenance at ground level. Includes a self-locking mechanism to prevent accidental slips.
Heavy-Duty Head Frame Assembly
The top pulley block is made of corrosion-resistant aluminum alloy and includes a lightning rod for surge protection. The specialized weather-cover protects the lifting cables from UV and rain.
Stable Luminaire Carriage System
Designed to carry multiple high-power LED floodlights, the carriage features an automatic docking system. It ensures the ring stays perfectly balanced and securely locked when in the operating position.

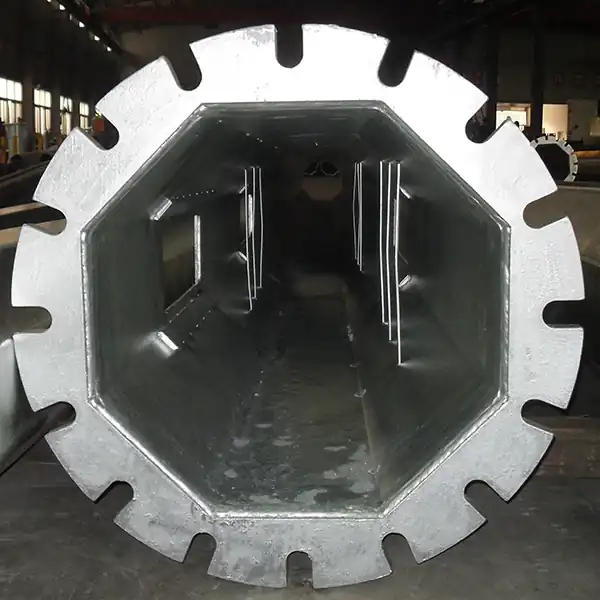

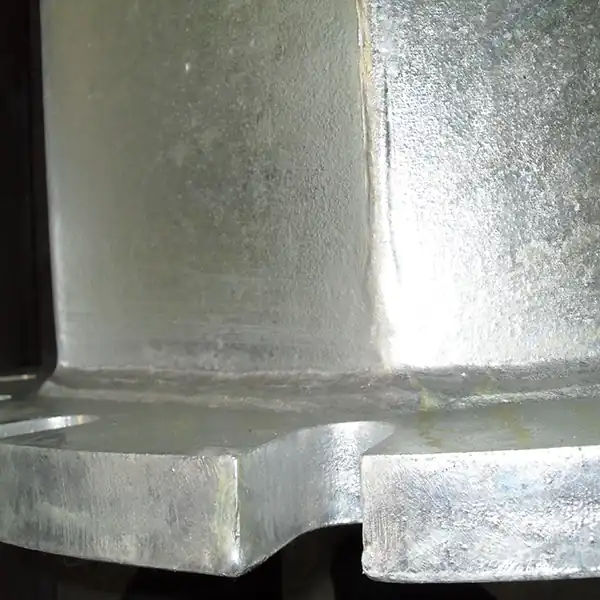

Reinforced Base Plate & Stiffeners
To withstand extreme wind loads, our base plates are extra-thick and reinforced with vertical stiffeners. This ensures a solid connection between the mast and the concrete foundation.
High Mast Poles Secure Service Door Systemor
The large service door at the base provides easy access to the internal winch and electrical panel. It features a reinforced rim and a secure locking system to prevent unauthorized access.
Heavy-Duty Custom High Mast Lighting Towers for Large-Area Infrastructure
JOYIME is a leading OEM/ODM manufacturer specializing in high-performance high mast poles and heavy-duty steel lighting towers. We offer fully customizable solutions for massive infrastructure sites, including airports, sea terminals, sports stadiums, and highway interchanges. Our in-house engineering team provides precise structural wind-load analysis and specialized CAD drawings to ensure complete safety and operational durability under any severe weather conditions.
Precision Fabrication with Motorized Raising & Lowering System
Our high mast lighting towers are constructed from premium Q345B or higher-grade structural steel, featuring a polygonal multi-section design for secure slip-fit assembly. To ensure effortless maintenance at heights above 15 meters, our masts are equipped with an advanced motorized raising and lowering winch system. For long-term corrosion resistance, every section is hot-dip galvanized strictly to ASTM A123 and ISO 1461 specifications, guaranteeing a rust-proof service life of 25+ years in coastal and heavy industrial zones.
Custom Configuration Guide for High Mast Systems
• Crown Options: Round, Symmetrical, Asymmetrical, or Custom Bracket Design
• Lifting Mechanism: Internal Winch with Stainless Steel Wire Rope & Power Tool Integration• Headframe Assembly: Heavy-duty pulleys with maintenance-free self-lubricating bearings
• Base Type: Reinforced Anchor Base Plate with customized Heavy-Duty Anchor Bolts
• Coating System: Superior Hot-dip Galvanized or Duplex System (HDG + Specialized Powder Coating)
• Headframe Assembly: Heavy-duty pulleys with maintenance-free self-lubricating bearings
High Mast Poles: Common Questions & Engineering Guidelines
Q1: How does your lowering system ensure safety during maintenance?
A: Our high mast poles feature a specialized self-locking mechanism and a heavy-duty electric winch. This allows the luminaire carriage to be lowered to ground level safely. The dual-cable system and automatic docking prevent any accidental falls during operation.
Q2: What is the maximum wind speed your high masts can withstand?
A: Each JOYIME high mast is custom-engineered based on local project requirements. Our standard designs support wind speeds up to 160km/h (45m/s). We provide structural calculations to ensure stability in extreme weather conditions like hurricanes or coastal storms.
Q3: Can the high mast poles carriage accommodate different types of LED floodlights?
A: Yes, the luminaire ring is highly customizable. It can be designed to support anywhere from 4 to 20+ high-power LED floodlights. We calculate the total weight and wind surface area to ensure the lifting system is perfectly balanced for your specific light fixtures.
Q4: How do you protect the high mast structure from long-term corrosion?
A: All our steel masts undergo a full Hot-Dip Galvanizing (ISO 1461) process. This provides a thick, durable zinc coating that protects the steel from rust for over 25-30 years, even in highly corrosive industrial or maritime environments.
Q5: How are the poles transported for international shipping?
A: To optimize shipping costs, our high mast poles are designed as nested telescopic sections. This allows 20m to 35m poles to fit efficiently into standard 40ft containers, significantly reducing freight expenses while protecting the pole from damage during transit.
Please specify the following requirements in your inquiry for an accurate design:
Pole Height: Standard 15m – 35m or custom height.
Wind Speed: Local maximum wind load (e.g., 160km/h).
Luminaire Layout: Number of floodlights and their total weight.
System Type: Motorized lowering system or fixed ladder access.
Data Required for a Technical Quote
Get a Customized Quote & Technical Drawings
Submit your specifications or project drawings. Our engineering team will respond with full CAD design files and a competitive price breakdown within 12 hours.
