U Terminal Blocks-823102

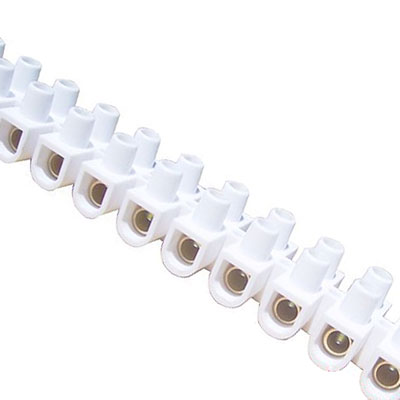

U terminal block also named 12 poles termial blcok, total have 12pcs couple connectors, it can be cut as need without effect install.

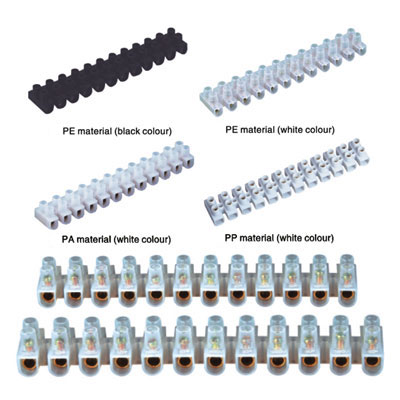

U type terminal block,
PP U type terminal block,
PA U type terminal block,
PE U type terminal block.
Material : PA, PE and PP plastic. Brass and ZN plated Iron screw.
Color: creamy white, white and black . Special colors may be customized.
Application: for connecting terminals in such devices as electric distribution box, cabinet and disc.
SKU: 823102 Category: Terminal Blocks
Description
U type terminal block specification:
Order no. | L in mm | W in mm | H in mm | MM2 | Voltage V | AMP |
823102-U3 | 93 | 15.5 | 12 | 4 | 380 | 3A |
823102-U5 | 107 | 15 | 13 | 6 | 380 | 3A |
823102-U6 | 105 | 18 | 14 | 6 | 380 | 6A |
823102-U10 | 128 | 19 | 15 | 10 | 380 | 10A |
823102-U15 | 134 | 22 | 17 | 12 | 380 | 15A |
823102-U20 | 142 | 22 | 17 | 14 | 380 | 20A |
823102-U30 | 165 | 25 | 19 | 16 | 380 | 30A |
823102-U60 | 192 | 30 | 23 | 25 | 380 | 60A |
823102-U80 | 209 | 37 | 26 | 30 | 380 | 80A |
823102-U100 | 229 | 38 | 30 | 35 | 380 | 100A |
823102-U150 | 260 | 43 | 32 | 40 | 380 | 150A |
