Street Lights 128110

Description

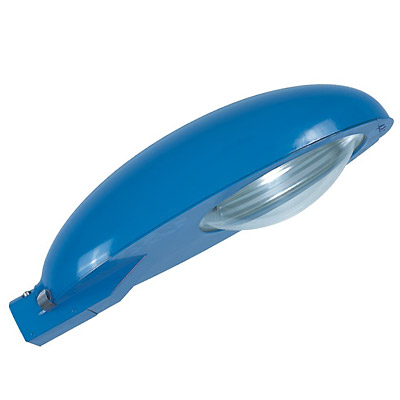

Street lights 128110:
Dimension 850*400*275mm.
road lighting luminaire which embodies functionality and aesthetics, reflecting the aspirations of today’s modern cities. step dimming option available for SON-T400W and SON-T250W lamp.
Main applications:
Major urban roads.
Expressways.
Featires:
Dedocated facted optocs to optimize beam contral and maximise light output.
Adjustable optics.
Choice of different bowls:curved or flat glass.
High IP: lamp compartment IP66, dust-tight and jet-water proof.
Dimming option using controller.
Maintenance from above in an ergonomic position.
Materials and finish:
Non-corrosive, high-pressure die-cast aluminum housing and spigot, high purity aluminum reflector, clear curved glass toughened bowl, silicone rubber gasket. All external fixings in stainless steel, E40 ceramic lamp holder.
Installation:
Suitable for lateral mounting on mast arms of 50-60mm.
Options:
Luminaire housing in diifferent colours are avaiable upon request.
Can accommodate high pressure sodium (SONT-T) lamp as well as metal halide lamps ranging from 150w to 400w.
Classifications:
Class 1
Fully complies with IEC 598/ENEC 60598
-High pressure die-casting aluminum body, surface with electric-static powder spraying treatment.
-Finishes: any RAL-color upon request.
-Heatproof silicon sealing gasket and with tempered glass cover.
-High purity reflector one piece pressed electro-polished anodized aluminum.
-The gear and lamp compartment can be easily accessed by opening the fore stainless steel hook.
-For quick and safety inspection the luminaries is supplied with anti-tipping cover device.
-Especial lamp holder better for HPS and MH lamp. socket slip device on the lamp holder.
-High temperature silicon insulated conductors are used throughout.
-Stainless steel clips and screws, integral design for fixture and gear box.
-Products key tag street light lamp supplies.
-Photo control base: optional
-Suitable for either post top entry and side entry max 62mm. base different model.
-Thermal toughened glass. thickness 4mm or 5mm,flat or curve optional or PC.
-Anti vacuum device.
-Popular street light lamp supplies model.
-Both gear trays are completed with lamp holder and/or electrical connectors for fast replacement and easy maintenance.
-Designed in accordance with relevant European Standards: EN 60598/1 and China GB Standard.
-IP65
-Install height 8m to 12m.
-Lifespan: 50,000 hours above.
-Pole install diameter 40mm or 60mm.
-Specification is optional for different configure and request.
-Packing information street light lamp supplies: export standard package.
