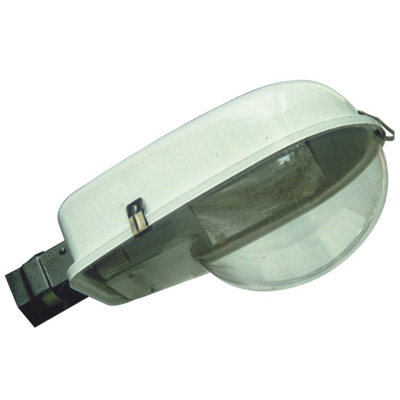

Street Lights 128102
Polycarbonate len street lights.
– HPS/MH/CFL classic street lights fixture.
– Die casting aluminum body.
– Flat or curved tempered glass lampshade.
– High purity aluminum reflector.
– Order SKU No.: 128102
Description
Street lights 128102:
E40 150W-250W.
42-60mm pole install diameter.
Dimension 450*310*210mm.
Aluminium casting body with Polycarbonate len.
Fit 8-12m pole height.
550*320*140mm for one pcs body.
460*320*250 mm for 10 pcs Polycarbonate len.
-High pressure die-casting aluminum body, surface with electric-static powder spraying treatment.
-Finishes: any RAL-color upon request.
-Heatproof silicon sealing gasket and with tempered glass cover.
-High purity reflector one piece pressed electro-polished anodized aluminum.
-The gear and lamp compartment can be easily accessed by opening the fore stainless steel hook.
-For quick and safety inspection the luminaries is supplied with anti-tipping cover device.
-Especial lamp holder better for HPS and MH lamp. socket slip device on the lamp holder.
-High temperature silicon insulated conductors are used throughout.
-Stainless steel clips and screws, integral design for fixture and gear box.
-Products key tag street lamp design supplies.
-Photo control base: optional
-Suitable for either post top entry and side entry max 62mm. base different model.
-Thermal toughened glass. thickness 4mm or 5mm,flat or curve optional or PC.
-Anti vacuum device.
-Popular street lamp design supplies model.
-Both gear trays are completed with lamp holder and/or electrical connectors for fast replacement and easy maintenance.
-Designed in accordance with relevant European Standards: EN 60598/1 and China GB Standard.
-IP65
-Install height 8m to 12m.
-Lifespan: 50,000 hours above.
-Pole install diameter 40mm or 60mm.
-Specification is optional for different configure and request.
-Packing information street lamp design supplies: export standard package.
Tips: One of study comparing metal halide and high-pressure sodium lamps showed that at equal photopic light levels, a street scene illuminated at night by a metal halide lighting system was reliably seen as brighter and safer than the same scene illuminated by a high pressure sodium system.
Street lights commonly uses high-intensity discharge lamps, often HPS high pressure sodium lamps.
Such lamps provide the greatest amount of photonic illumination for the least consumption of electricity. White light sources have been shown to double driver peripheral vision and improve driver brake reaction time by at least 25%. When street lights calculations are used, HPS lamp performance needs to be reduced by a minimum value of 75%.
