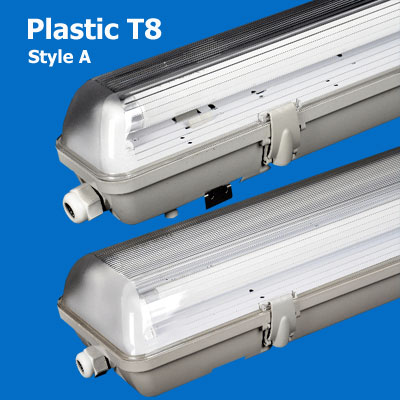

Plastic T8 Waterproof Lighting 635102

Waterproof T8 fluorescent lighting fixture.
LED tube or fluorescent tube.
Certification:TUV-CE,TUV-EMC,TUV-CB,SAA,CCC
Function:waterproof, dust proof,anti-corrosive.
natural silicon gel gasket used in the housing ,PC clips or Staineless steel clips for locking and waterproof cable gland on side of the housing to ensure good waterproof function.
Material:many types combinations between housing and diffuser to meet different requests:
ABS housing Polycarbonate(PC) diffuser.
Polycarbonate (PC) housing Polycarbonate (PC) diffuser.
Polycarbonate (PC) wire clips to ensure electrical safety.
Prismatic diffuser with unique shape design to get average ray,efficient usage of light and good dazzle-proof effect.

SKU: 635102 Category:

Description

Plastic Waterproof T8 fluorescent lighting fixture.
ABC PC Waterproof T8 fluorescent lighting.
PC PC Waterproof T8 fluorescent lighting

Easy and quick to installation under ceiling or on surface.
Plastic gear tray holder connected to the housing for easy maintenance.
Closing clips material:PC or stainless steel.
Application: wet room,kitchen,workshop,carpark,chemical factory, poultry barn etc.
Options: emergency kit and microwave motion sensor.
Plastic-T8-waterproof-light

Order no.WattMaterialIP RatingDimension LHWBox DimCarton DimQty/CartonN.WeightG.Weight
635102-118A1x18WABS PCIP 65660x105x100mm680x105x70mm690x220x370mm10 pcs9.0kg10.5kg
635102-118B1x18WPC PCIP 65660x105x100mm680x105x70mm690x220x370mm10 pcs9.0kg10.5kg
635102-218A2x18WABS PCIP 65660x105x160mm680x165x70mm690x300x350mm8 pcs9.0kg11kg
635102-218B2x18WPC PCIP 65660x105x160mm680x165x70mm690x300x350mm8 pcs9.0kg11kg
635102-136A1x36WABS PCIP 651270x105x100mm1290x105x70mm1300x300x230mm8 pcs12.8kg14.8kg
635102-136B1x36WPC PCIP 651270x105x100mm1290x105x70mm1300x300x230mm8 pcs12.8kg14.8kg
635102-236A2x36WABS PCIP 651270x105x160mm1290x165x70mm1300x230x350mm6 pcs13.5kg15.5kg
635102-236B2x36WPC PCIP 651270x105x160mm1290x165x70mm1300x230x350mm6 pcs13.5kg15.5kg
635102-158A1x58WABS PCIP 651570x105x100mm1590x105x70mm1600x230x230mm6 pcs16kg17.5kg
635102-158B1x58WPC PCIP 651570x105x100mm1590x105x70mm1600x230x230mm6 pcs16kg17.5kg
635102-258A2x58WABS PCIP 651570x105x160mm1590x165x70mm1600x300x185mm4 pcs14.5kg15.5kg
635102-258B2x58WPC PCIP 651570x105x160mm1590x165x70mm1600x300x185mm4 pcs14.5kg15.5kg
