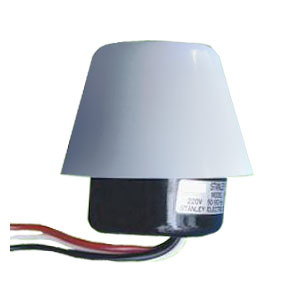

Photocontrol 851102
Photocontrol / Photocell
Applications:
Street way lighting
Building perimeter lighting
Outdoor advertising signs
Parking lot lighting
Description
Features and Benefits:
Meet stringent utility standards for street and highway lighting.
Delayed response prevent false switching due to light from vehicles, lighting etc.
Longer life extends the maintenace cycle for photocontrols mounted in diffcult locations.
Positive electronic switching provides quick made/break of the load relay eliminating relay chatter.
Low power consumption through a unique regulator circuit. resulting low internal temperature rise contributes to long life. for safety reasons, the photocontrols are designed to fail in the ON position.
Specifications:
| Nominal Voltages | 120VAC, 220VAC, 240VAC, 277VAC, 120-277VAC, 480VAC, 50/60 Hz |
| Maximum Load | 1000 Watt tungsten, 1800 VA. HID |
| Guaranteed Operation | 5000 operations minimun (13.7 years) |
| Turn-ON / Turn-Off | <1:4 (Electronic), <1:5 (Thermal) |
| Delay Time (Instant on) | 30 to 120 seconds |
| Operatiing temperature | -40 to 70 degree Celsius (-40F to 158F) |
| Surge protection (MOV) | 90J, 180J, 320J (optional) |
| Average Power consumption | <1 watts |
| Photocell | Cadmium sulphide (Cds), or phototransistor (Hermetically sealed Cds) |
| Materials | Cover:Polypropylen UV stabilized, high impact, flammability resistance |
| Warranty | Full warranty against defects in material and workmanship for 1 year from date of manufacture. |
| Order no. | Voltage -50/60Hz | Fail Model | Load Rating |
| 851102-B1210T | 105-135V | ON or OFF | 10A |
| 851102-B2210T | 180-240V | ON or OFF | 10A |
| 851102-B2410T | 200-285V | ON or OFF | 10A |
| 851102-B1206E | 105-135V | ON or OFF | 6A |
| 851102-B2206E | 180-240V | ON or OFF | 6A |
| 851102-B2406E | 200-285V | ON or OFF | 6A |
| 851102-B1210E | 105-305V | ON or OFF | 10A |
| 851102-B2210E | 180-240V | ON or OFF | 10A |
| 851102-B2410E | 200-285V | ON or OFF | 10A |
| T: Thermal Type, E:Electronic Type | |||
