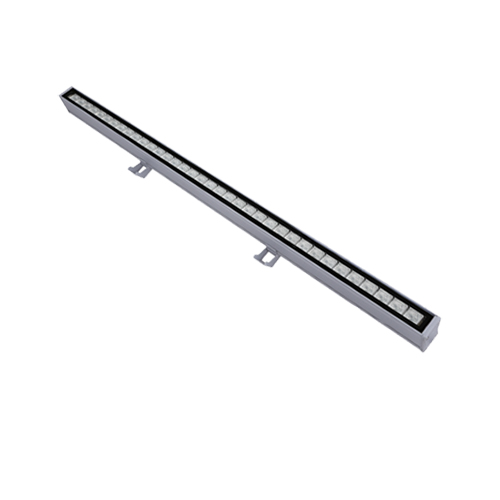

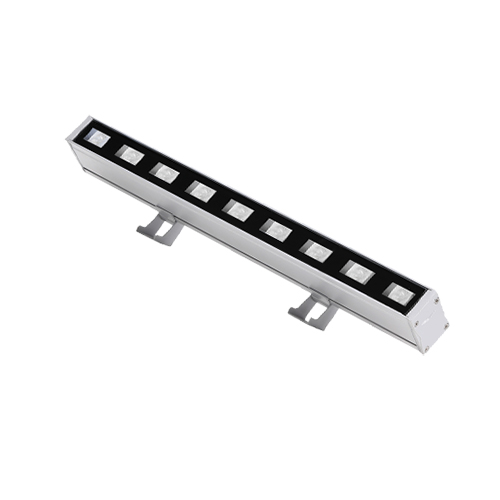

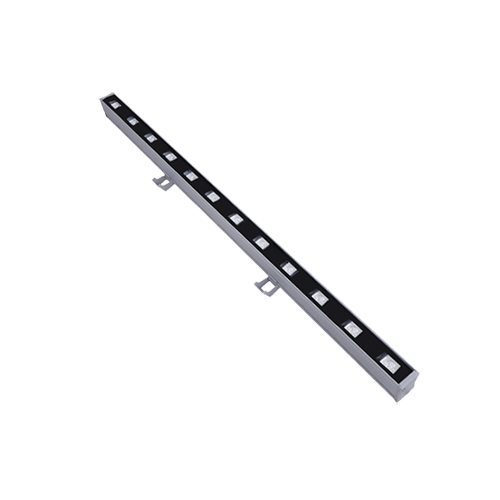

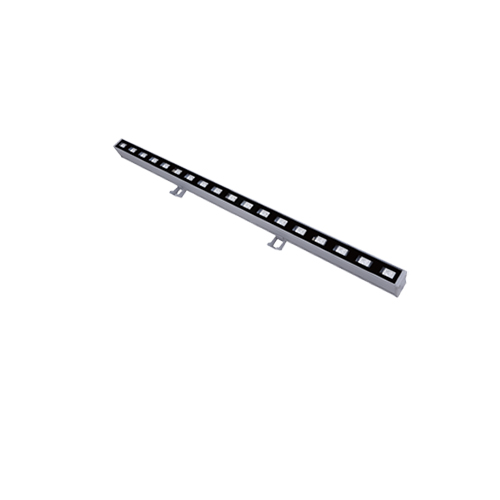

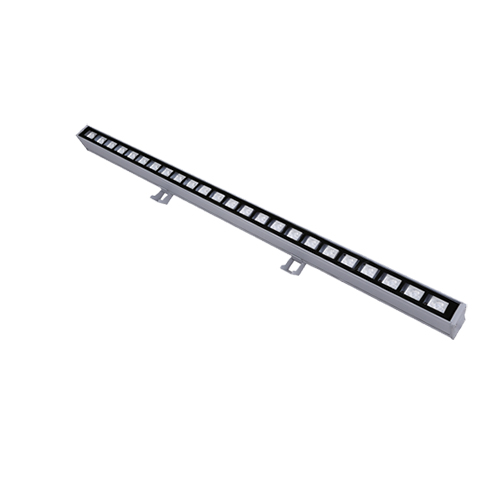

LED Wall Washer Lights 626104
LED Wall Washer Lights
a.Unique switch constant current source technology ensures every LED’S steady work.
b.Simple wiring makes the lighting installation and maintenance more convenient and efficient.
c.Lamp shell uses 6063 aluminum alloy and overall molding process.Special structure design ensures good heat radiation,and reduces LED’s light wane effectively.
Description
Available with different optics to enhance architectural designs of other specific applications:
Cove Lighting and Wall Grazing,Outdoor architectures outline, amusement park, hotels, malls, square street, bridges and city lighting place. etc.
Features:
a.Input voltage(V):DC24.
b.Control Mode:CC/DMX512.
c.Beam angle:10° 25° 40° 60° 10×50° .
d.Working temperature:-35 to 50C.
e.LED lifetime:70,000hours.
f.IP66 suitable for wet location.
| ORDER NO. | 626104A | 626104B | 626104C | 626104D | 626104E |
| COLOR | 36 SINGLE/12R12G12B | 24 SINGLE/8R8G8B | 18 SINGLE/6R6G6B | 12 SINGLE/4R4G4B | 9 SINGLE/3R3G3B |
| RATED POWER | 38W | 27W | 20W | 14W | 10W |
| LUMINOUS FLUX | 3444/1981LM | 2295/1320LM | 1722/990LM | 1160/660LM | 870/497LM |
| N.W | 3.2KGS/PCS | 3.0KGS/PCS | 2.8KGS/PCS | 2.6KGS/PCS | 1.9KGS/PCS |
| G.W | 20.4KGS | 19.8KGS | 19.2KGS | 18.6KGS | 13.2KGS |
| DIMENSION(MM) | 1070*465*185 | 1070*465*185 | 1070*465*185 | 1070*465*185 | 560*455*185 |
