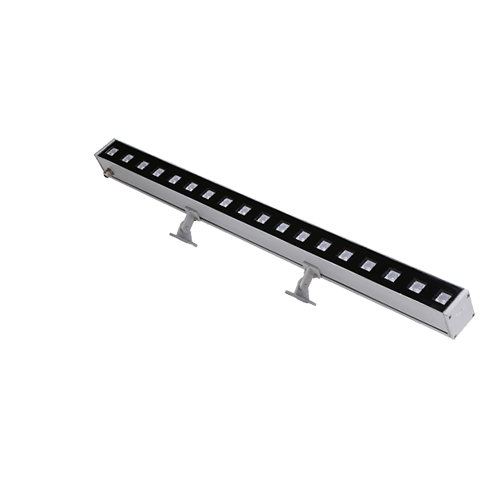

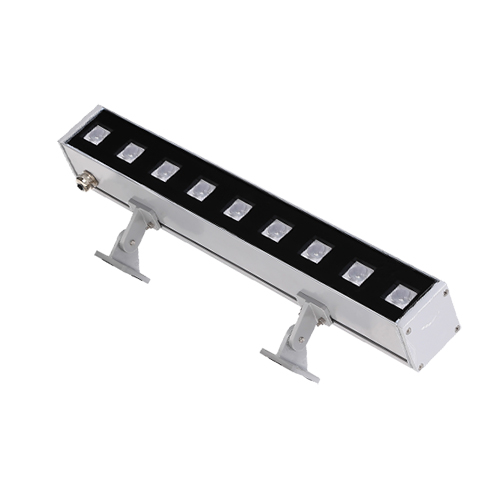

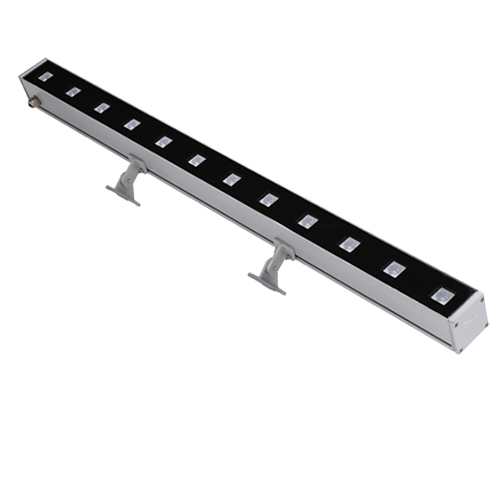

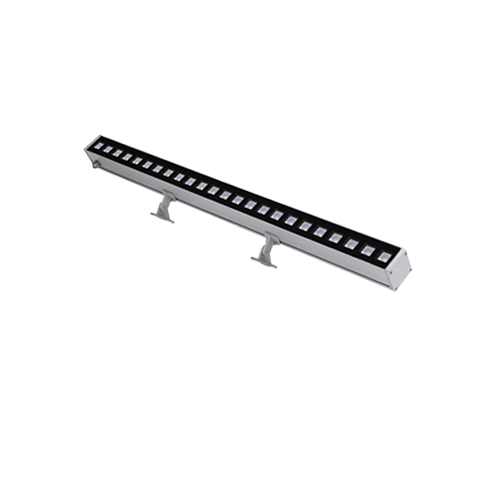

LED Wall Washer Lights 626101
LED Wall Washer Lights
a.The rectangle glass optional.
b.High brightness.
c.Long life of 70,000hours.
d.Easy to install.
e.No harmful substance.
Description
Available with different optics to enhance architectural designs of other specific applications:
Cove Lighting and Wall Grazing,Outdoor architectures outline, amusement park, hotels, malls, square street, bridges and city lighting place. etc.
Features:
a.Input voltage(V):DC24.
b.Control Mode:CC/DMX512.
c.Beam angle:10° 25° 40° 60° 10×50° .
d.Working temperature:-35 to 50C.
e.LED lifetime:70,000hours.
f.IP66 suitable for wet location.
| ORDER NO | 626101A | 626101B | 626101C | 626101D |
| COLOR | 24 SINGLE/8R8G8B | 18 SINGLE/6R6G6B | 12 SINGLE/4R4G4B | 9 SINGLE/3R3G3B |
| RATED POWER | 60W | 46W | 31W | 24W |
| LUMINOUS FLUX | 4001/2244LM | 3008/1683LM | 2005/1122LM | 1505/845LM |
| N.W(INNER) | 4.0KGS | 3.95KGS | 3.9KGS | 2.8KGS |
| N.W(OUTER) | 24KGS | 23.7KGS | 23.4KGS | 22.4KGS |
| G.W(INNER) | 4.25KGS | 4.2KGS | 4.15KGS | 3.0KGS |
| G.W(OUTER) | 25.5KGS | 25.2KGS | 24.9KGS | 24.0KGS |
| DIMENSION(INNER) | 1055*170*120MM | 1055*170*120MM | 1066*170*120MM | 560*170*120MM |
| DIMENSION(OUTER) | 1095*405*440MM | 1095*405*440MM | 1095*405*440MM | 1185*405*305MM |
