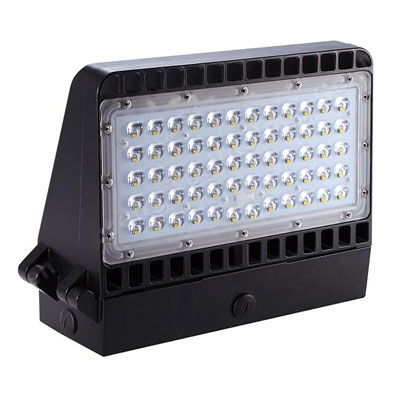

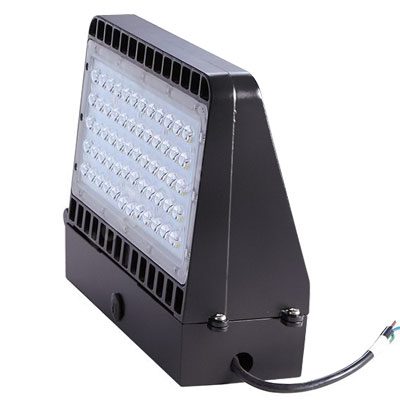

LED Wall Pack Lights 726102
Full cut-off LED Wall Pack Lights.
a.Funnelled heat dissipation structure gives the wall lamp better heat dissipation effect
b.Philips,Samsung LEDs optional
c.Mean well driver
d.Dialux simulation service provided.
e.ETL ,DLC,CE,ROHS
Description
The application of the occasions:
Factory workshop, Gym,industrial lighting, wall lighting area.
Features:

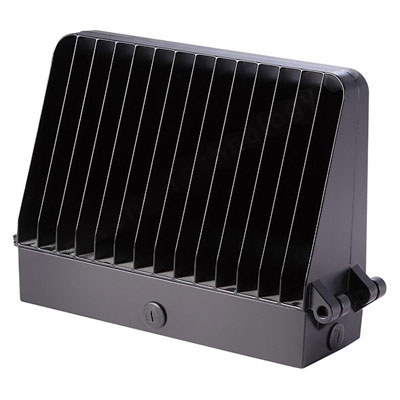

Including series of patents, Unique funnel heat sinker, making the lamp better for heat dissipation. Fresnel teeth lighting design for the PC cover, which is suitable for wall light distribution.
The LED driver and LED light source are separated, which is convenient for install and assemble.
LED driver is movable easily, which helps to replace LED driver.
Beauty for the appearance, using Philips or Cree LED.
Meanwell Driver are applied.
IP65.
PF.0.9
4000K 5000K 6000K CCT optional.
Power: 85-265V AC.
| Order No. | Lumens | Power | dimension | Packing | Net Weight |
| 726102-W20 | 1800 LM | 20 /- 3W | 362x112x256 mm | 395x185x330 mm | 4.9 kg |
| 726102-W40 | 3600 LM | 40 /- 3W | 362x112x256 mm | 395x185x330 mm | 4.9 kg |
| 726102-W60 | 5400 LM | 60 /- 3W | 362x112x256 mm | 395x185x330 mm | 4.9 kg |
| 726102-W80 | 7200 LM | 80 /- 3W | 362x112x256 mm | 395x185x330 mm | 4.9 kg |
| 726102-W100 | 9000 LM | 100 /- 5W | 362x112x256 mm | 395x185x330 mm | 4.9 kg |
| 726102-W120 | 10800 LM | 120 /- 5W | 362x112x256 mm | 395x185x330 mm | 4.9 kg |
| 726102-W150 | 13500 LM | 150 /- 5W | 362x112x256 mm | 395x185x330 mm | 4.9 kg |
