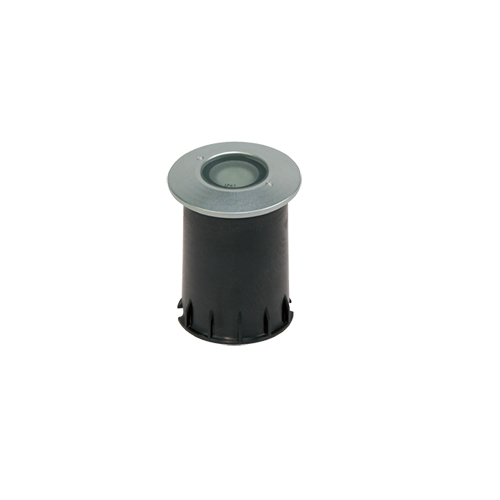

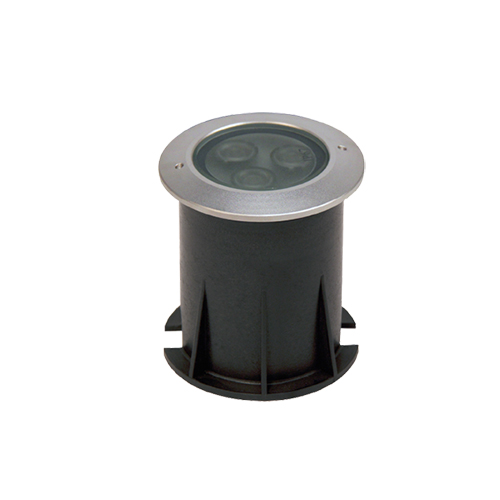

LED Underground Lights 637105
LED Underground Lights
a.The lamp body used high pressure die-casting aluminum.The cover uses stainless steel while the buried barrel uses high-quality corrosion resistant nylon.
b.The diffuser use thickened toughened glass,having an advantages in impact resistance and abrasion.Meanwhile the diffucer and light cover is at the same level,no fall.
c.The light source use high quality LEDs and could choose RGB or single color.
d.Humanized design,fix for many occasions.
Description
Applications
public square, parking lot, parks, streets,building, sculpture etc.
Features:
a.Control mode:CC.
b.Light weight under:2500kgs.
c.Glass surface temperature:40°C.
d.Working temperature:-35 to 50C.
e.Working life:70,000hours.
f.IP67 suitable for wet location.
g.Inner N.W and G.W:0.5/0.6KGS.
h.External N.W and G.W:18/21KGS.
| ORDER NO. | 637105A | 637105B | 637105C | 637105D |
| LED QTY | 3PCS | 3PCS | 1PC | 1PC |
| RATED POWER | 4W | 8W | 1.4W | 2.8W |
| COLOR | SINGLE/RGB | SINGLE/RGB | SINGLE | SINGLE |
| LUMINOUS FLUX | 284LM | 448LM | 97LM | 153LM |
| INPUT VOLTAGE | DC24V | DC24V | AV100-277V,DC24V | AC100-277V,DC24V |
| BEAM ANGLE | 10° 25° 40° 60° | 10° 25° 40° 60° | 25° | 25° |
| DIMENSION(inner) | 110*110*115 | 110*110*115 | 85*85*155 | 85*85*155 |
| DIMENSION(outer) | 460*355*395 | 460*355*395 | 450*365*485 | 450*365*485 |
