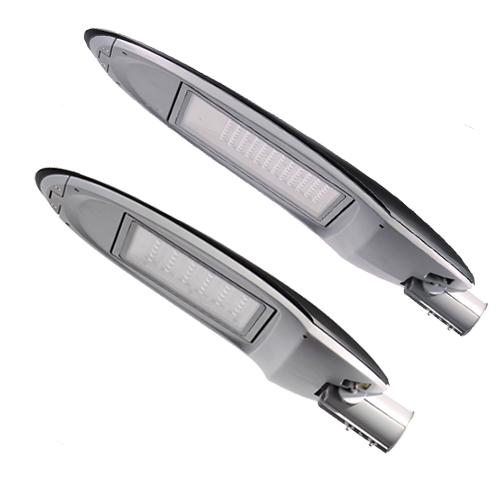

LED Street Lights 528327
LED Street Lights
a.With streamline shape,self-clean ability which guarantee LED Light keep clean.
b.Surface with powder coating and anti-corrosion treatment which is firm and durable.
c.Toggle clip design,tool free to open LED light which is easy and convenient.
d.Outage design it will auto cut off electricity when open LED light cover which is safe.
e.Side air radiation design , good for LED light heat radiation which guarantee the lamp life span.
Description
Application:
City expressway, trunk road, factories, schools, garden, parking lots,pubic parks etc.
Features:
a.With streamline shape,self-clean ability which guarantee LED Light keep clean.
b.Color temperature 3000K 4000K 6500K optional.
c. Input Voltage(V):AC100-277.
d.Frequency Range:50/60Hz.
e.Driver efficiency >0.9.
f. CRI (Ra>):70.
g. Working Temperature(℃):-35 to 50.
h. System rating is at 70,000 hours.
i.IP65.
| ORDER NO. | LED QUANTITY | RATED POWER | LUMINOUS FLUX | INSTALLATION PIPE DIAMETER | INSTALLATION HEIGHT | N.W | G.W | DIMENSION(MM) |
| 528327A | 96PCS | 140W | 16020/14840/12020LM | Φ60MM | 10-12M | 11KGS | 12KGS | 970*455*220 |
| 528327B | 64PCS | 110W | 12220/11320/9170LM | Φ60MM | 8-10M | 11KGS | 12KGS | 970*455*220 |
| 528327C | 48PCS | 90W | 9330/8800/7130LM | Φ60MM | 7-9M | 11KGS | 12KGS | 970*455*220 |
| 528327D | 36PCS | 62W | 6480/6000/4860LM | Φ60MM/Φ48MM | 6-8M | 6.8KGS | 7.8KGS | 785*390*215 |
| 528327E | 18PCS | 35W | 3550/3280/2660LM | Φ60MM/Φ48MM | 4-6M | 6.8KGS | 7.8KGS | 785*390*215 |
