LED Street Lights 528320

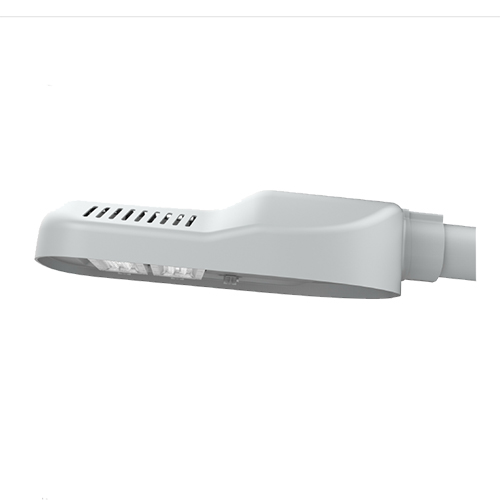

LED Street Light
a.The modular light source design,high performance aluminum radiator,Surface adopt electrostatic spraying,Protection achieved IP66.
b.Clip design adaptor to meets different pipe diameter poles.
c.Amp body uses 0 state stretched aluminum plate,convection design for LED module’s heat radiation,extend the lamp life and decrease the lamp weight.
d.Power cavity with independent disign,easy maintenance.
Description
Application:
Roadway, city expressway, trunk road, factories, schools, garden, parking lots,pubic parks etc.
Features:
a.The modular light source design,high performance aluminum radiator,Surface adopt electrostatic spraying,Protection achieved IP66.
b. Color temperature 3000K 4000K 6500K optional.
c.Input Voltage(V):AC200-240.
d.Frequency Range:50/60Hz.
e.The power factor is greater than 0.9.
f.CRI (Ra>):70.
g.Working Temperature(℃):-35 to 50.
h.System rating is at 70,000 hours.
i.IP66.
j.N.W and G.W:6.6/7.6kgs.
k.Dimension(mm):560*430*140mm.
| ORDER NO. | ELECTRIC CURRENT | LED QUANTITY | RATED POWER | LUMINOUS FLUX | INSTALLATION HEIGHT |
| 528320A | 1050 | 36PCS | 122W | 12280/11370/10460LM | 9-11M |
| 528320B | 850 | 36PCS | 98W | 10640/9850/9060LM | 8-10M |
