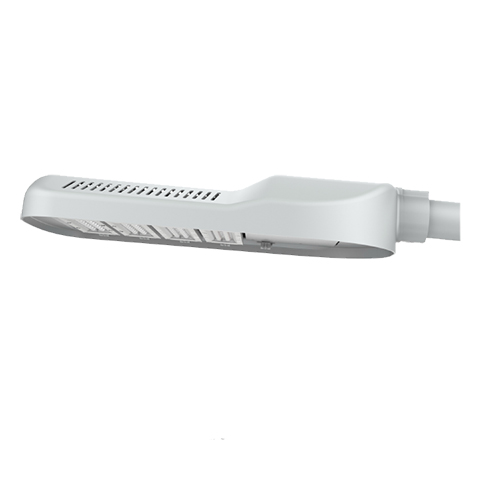

LED Street Lights 528319
LED Street Lights
a.Unique briquetting desig,the light source module and appliances can satisfied without tooling loading and unloading.
b.The output light utilization achieved more than 95%.
c.Power cavity with independent disign,easy maintenance.
d.The convection design,better for LED module’s heat radiation and extend lifespan.
Description
Application:
City expressway, trunk road, factories, schools, garden, parking lots,pubic parks etc.
Features:
a.Unique briquetting desig,the light source module and appliances can satisfied without tooling loading and unloading.
b.LED Quantity:72pcs.
c. Color temperature:6500/4000/3000K.
d.Input Voltage(V):AC200-240.
e.Frequency Range:50/60Hz.
f.The power factor is greater than 0.9.
g.CRI (Ra>):70.
h.Working Temperature(℃):-35 to 50.
i.System rating is at 70,000 hours.
j.IP66 suitable for wet locations.
k.Installation Pipe Diameter:Φ60mm/Φ76mm.
l.Dimension(mm):725*430*140mm.
| ORDER NO. | ELECTRIC CURRENT | RATED POWER | LUMINOUS FLUX | INSTALLATION HEIGHT | N.W | G.W |
| 528319A | 1050 | 245W | 24560/22740/20920LM | 12-14M | 8KGS | 9.3KGS |
| 528319B | 850 | 194W | 21270/19700/18120LM | 11-13M | 8.6KGS | 9.9KGS |
