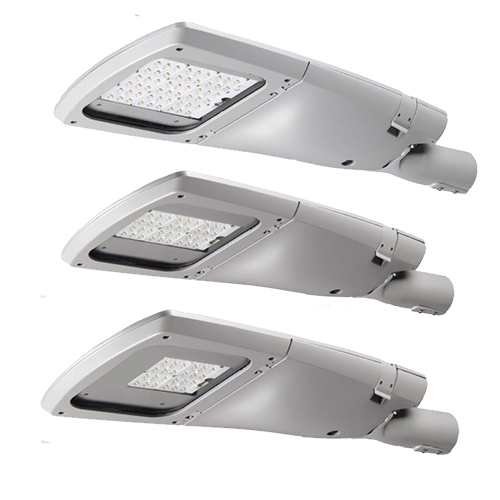

LED Street Lights 528314
LED Street Lights
a.Clip-on design makes lamp easy to install,maintain and replace.
b. IP Rating:IP66.
c.Wide operating voltage of 100-277V.
d. Luminaire tilt adjustment,side entry:-15° to 15°.
e.Luminaire tilt adjustment, post top:0° to 15°.
Description
Application:
Highway road, trunk road, factories, schools, garden, parking lots,pubic parks etc.
Features:
a.Clip-on design makes lamp easy to install,maintain and replace.
b.Color temperature 3000K 4000K 6500K optional.
c.Input Voltage(V):AC100-277.
d.Frequency Range:50/60Hz.
e.The power factor is greater than 0.9.
f.CRI (Ra>):70.
g.Working Temperature(℃):-35 to 50.
h.LED Lifetime:70,000hours.
i.IP Rating:IP66.
j.Installation Pipe Diameter:Φ48mm/Φ60mm.
| ORDER NO. | 528314A | 528314B | 528314C | 528314D | 528314E | 528314F | 528314G |
| ELECTRIC CURRENT | 525 | 700 | 525 | 700 | 525 | 700 | 525 |
| LED QUANTITY | 54PCS | 36PCS | 36PCS | 24PCS | 24PCS | 18PCS | 18PCS |
| RATED POWER | 88W | 80W | 59W | 53W | 42W | 43W | 32W |
| LUMINOUS FLUX | 9910/9180/8440LM | 8510/7880/7250LM | 6740/6240/5750LM | 5670/5250/4830LM | 4500/4160/3830LM | 4300/3980/3660LM | 3410/3160/2900LM |
| INSTALLATION HEIGHT | 8-10M | 8-10M | 6-8M | 6-8M | 4-6M | 4-6M | 4-6M |
| N.W | 7.8KGS | 7.8KGS | 7.4KGS | 7.8KGS | 7.4KGS | 7.4KGS | 7.4KGS |
| G.W | 9.9KGS | 9.9KGS | 9.5KGS | 9.9KGS | 9.5KGS | 9.5KGS | 9.5KGS |
| DIMENSION(MM) | 825*435*175 | 825*435*172 | 825*435*172 | 825*435*172 | 825*435*172 | 825*435*172 | 825*435*172 |
