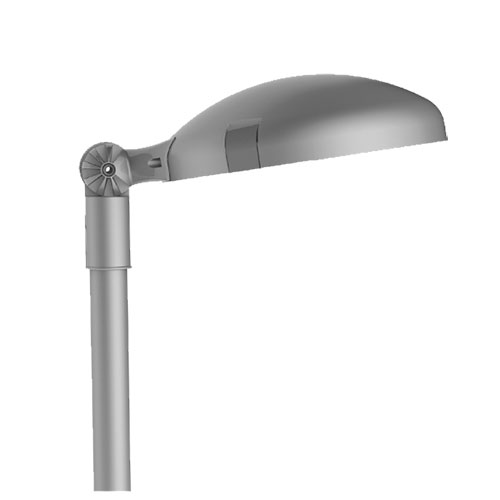

LED Street Lights 528303
a.Delachable design,use fast turn off power protector makes lamp convenient for maintenance.
b.Clip-on design makes lamp easy to install,maintain and replace.
c.Utilizes high brightness leds,the color rendering index greater than 70.
Description
Application:
Highway road, trunk road, factories, schools, garden, parking lots,pubic parks etc.
Features:a.
a.Delachable design,use fast turn off power protector makes lamp convenient for maintenance.
b.Using high brightness leds,color rendering index greater than 70 .
c.Temperature Rated at -35 to 50C.
d.System rating is at 70,000 hours.
e.IP66 suitable for wet locations.
f.Installation Pipe Diameter:Φ48mm/Φ60mm.
g.Color Temperature:6500/4000/3000k.
h.Input Voltage is AC100-277V.
i.Frequency Range:50/60Hz.
j.The power factor is greater than 0.9.
k.N.W and G.W:11.3kgs/13.2kgs
| ORDER NO. | ELECTRIC CURRENT | LED QUANTITY | RATED POWER | LUMINOUS FLUX | INSTALLATION HEIGHT | DIMENSION(MM) |
| 528303A | 700 | 24PCS | 53W | 5730/5300/4880LM | 5-7M | 795*545*190 |
| 528303B | 500 | 36PCS | 59W | 6810/6300/5800LM | 6-8M | 795*545*190 |
