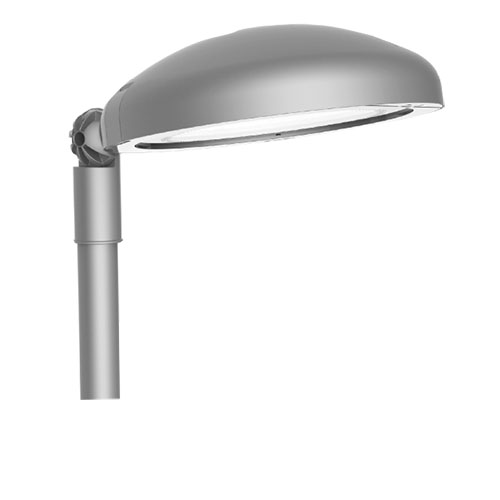

LED Street Lights 528302
a.Tempered glass with 94% light transmittance ensures lamp reaches IK08.
b.Standard colors: Metal Grey,white,black or pearl powder can be choose.
c.Clip-on design makes lamp easy to install,maintain and replace.
d.The photocell,wireless single lamp controller and surge protector are optional.
Description
Application:
City expressway, trunk road, factories, schools, garden, parking lots,pubic parks etc.
Features:
a.Tempered glass with 94% light transmittance ensures lamp reaches IK08.
b.Color Temperature:6500/4000/3000k.
c.Input Voltage is AC100-277V.
d.Frequency Range:50/60Hz.
e.Power Factor:PF>0.9.
f.Color rendering Index:>70.
g.Temperature Rated at -35 to 50C.
h.System rating is at 70,000 hours.
i.IP66 suitable for wet locations.
j.Installation Pipe Diameter:Φ48mm/Φ60mm.
k.Net Weight and Gross Weight:11.3kgs/13.2kgs.
l.Packing Size:795*545*190mm.
| ORDER NO. | ELECTRIC CURRENT | LED QUANTITY | RATED POWER | LUMINOUS FLUX | INSTALLATION HEIGHT |
| 528302A | 700 | 36PCS | 80W | 8590/7950/7320LM | 6-8M |
| 528302B | 500 | 54PCS | 88W | 10010/9270/8530LM | 8-10M |
