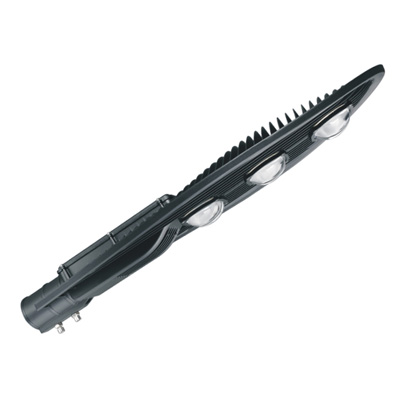

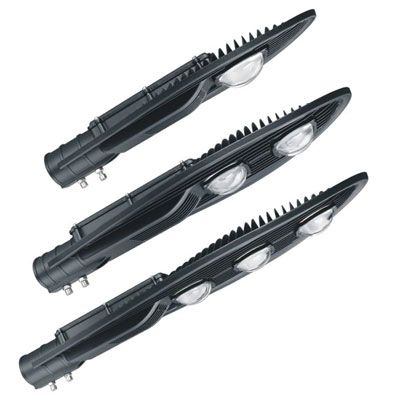

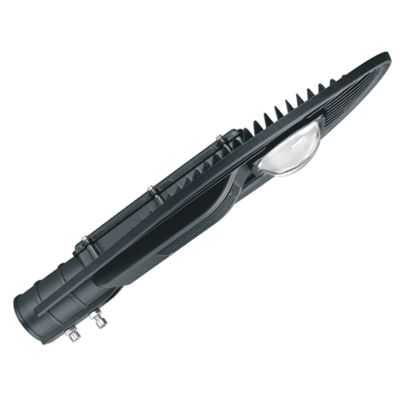

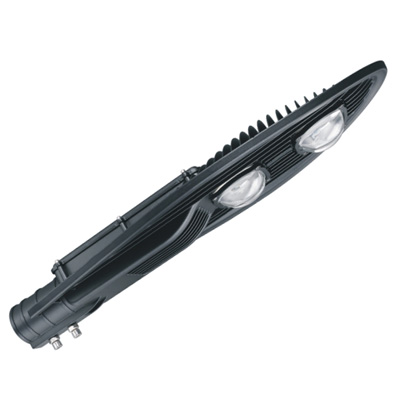

LED Street Lights 528102
Homeland Led Street Lights
a.Structured LED arrays mounted on metal core circuit for optimized light photometric distribution .
b.85×135 precision refractive optical lens designed for various applications
c.Powder coated, minimum 2.0 mil thickness.
d.LED brand :Samgung
e.Driver :Meanwell
f.Dialux simulation service provided.
Description
Application:
Roadwat, highway, city expressway, trunk road, factories, schools, garden, parking lots,pubic parks etc.
Features:
a.Structured LED arrays mounted on metal core circuit for optimized light photo metric distribution.
b.Utilizes high brightness leds , 70 CRI at 4000-4500K and 5650-6300K typical.
c.LM-79 tests and reports are performed in accordance with IESNA standards.
d.System rating is at 50,000 hours.
e.IP65 suitable for wet locations.
f.Temperature Rated at – 40 to 40 C.
g.Contains no lead or mercury.
h.Powder coated, minimum 2.0 mil thickness.
i.Standard colors: Silver .RAL or custom colors available with minimum order quantities and extended lead times.

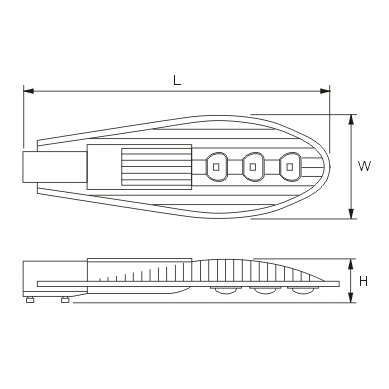

| Order No. | CCT | CRI | Luminous Flux | Dimension (mm) | System Power |
| 528102-W30 | 5000K | >=70 | 2700 LM | 400*170*70 | 33 W |
| 528102-W60 | 5000K | >=70 | 5400 LM | 500*215*80 | 65 W |
| 528102-W80 | 5000K | >=70 | 7200 LM | 620*260*100 | 87 W |
| 528102-W120 | 5000K | >=70 | 10800 LM | 720*280*110 | 130 W |
| 528102-W180 | 5000K | >=70 | 16500 LM | 880*340*120 | 190 W |
