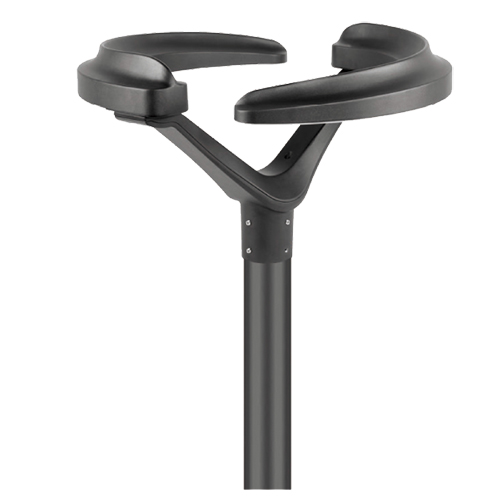

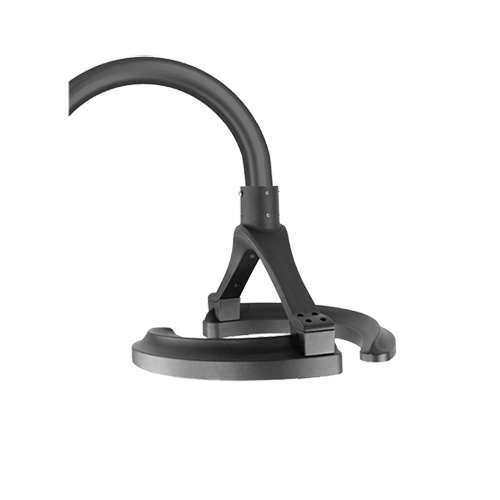

LED Garden Lights 523213
LED Garden Lights
a.The light features simple design and good aesthetics.
b.Body made of die-casting aluminum.Eletro-statically applied polyester powder coat finish.Resistant to impact and corrosion.
c.Glare-free and good light uniformity.
d.Humanized design,suitable for various applications.
Description
Application:
City expressway, trunk road, factories, schools, garden, parking lots,pubic parks etc.
Features:
a.Color Temperature:6500/4000/3000k.
b.Input Voltage is AC100-277V.
c.Frequency Range:50/60Hz.
d.Power Factor:PF>0.9.
e.Color rendering Index:>70.
f.Installation height:3-5m.
g.Temperature Rated at -35 to 50C.
h.System rating is at 70,000 hours.
i:IP65.
j.Dimension(mm):692*692*435.
| ORDER NO. | LED QTY | RATED POWER | LUMINOUS FLUX | INSTALLATION PIPE DIAMETER | N.W | G.W |
| 523213A | 162PCS | 83W | 3457/3180/2607LM | Φ76MM | 6.0KGS | 7.0KGS |
| 523213B | 108PCS | 62W | 2568/2362/1937LM | Φ76MM | 6.0KGS | 7.0KGS |
| 523213C | 54PCS | 32W | 1310/1205/988LM | Φ76MM | 6.0KGS | 7.0KGS |
| 523213D | 162PCS | 83W | 3457/3180/2607LM | Φ48MM | 6.2KGS | 7.2KGS |
| 523213E | 108PCS | 62W | 2568/2362/1937LM | Φ48MM | 6.2KGS | 7.2KGS |
| 523213F | 54PCS | 32W | 1310/1205/988LM | Φ48MM | 6.2KGS | 7.2KGS |
