LED Garden Lights 523205

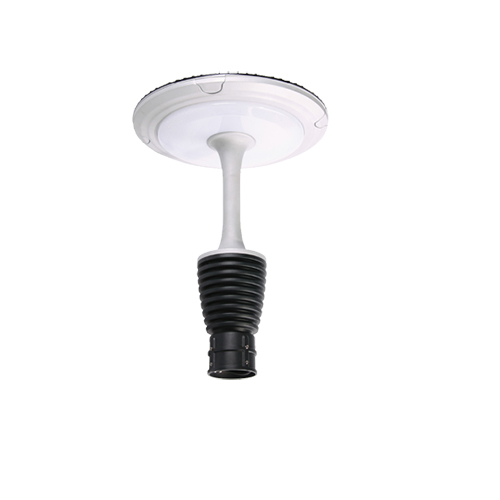

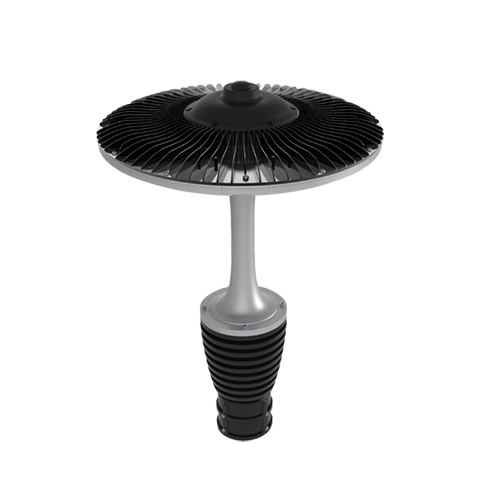

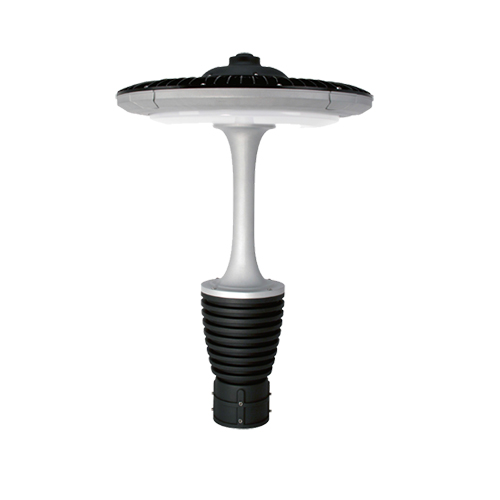

LED Garden Lights
a.Owned patent,many advanced technologies in this garden light.
b.Fashionable and modern design make the lamp to be the nice sight in the city.
c.The housing is made of die-cast aluminum with epoxy electrocoating.The diffuser is made of optical-grade polycarbonate,UV-stabilized,resistant to aging and high temperature.
d.1-3W high quality LED used.
Description
Application:
City expressway, trunk road, factories, schools, garden, parking lots,pubic parks etc.
Features:
a.Color Temperature:6500/4000/3000k.
b.Input Voltage is AC100-277V.
c.Frequency Range:50/60Hz.
d.Power Factor:PF>0.9.
e.Color rendering Index:>70.
f.Installation pipe diameter:Φ114mm.
g.Light pole flange size:4-M16X320mm.
h.Temperature Rated at -35 to 50C.
i.System rating is at 70,000 hours.
j.IP65.
k.Dimension:615*615*585mm/625*625*889mm
| ORDER NO. | LED QTY | RATED POWER | LUMINOUS FLUX | N.W | G.W |
| 523205A | 72PCS | 82W | 4737/4373/3623LM | 14.20KGS | 15.70KGS |
| 523205B | 54PCS | 65W | 3780/3505/2902LM | 14.00KGS | 15.50KGS |
| 523205C | 54PCS | 86W | 4612/4243/3479LM | 14.20KGS | 15.70KGS |
| 523205D | 24PCS | 30W | 1743/1611/1296LM | 13.80KGS | 15.30KGS |
| 523205E | 24PCS | 60W | 2754/2533/2077LM | 14.00KGS | 15.50KGS |
| 523205F | 12PCS | 31W | 1394/1282/1051LM | 13.80KGS | 15.30KGS |
