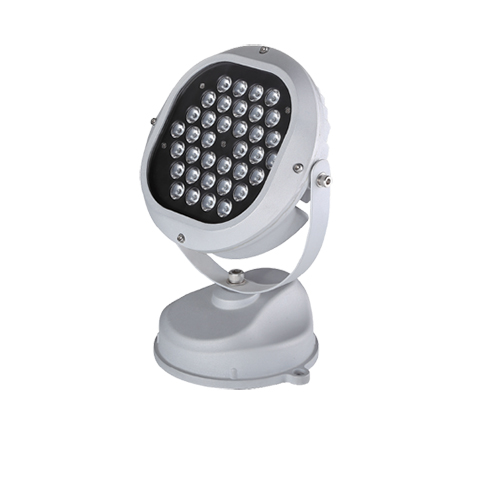

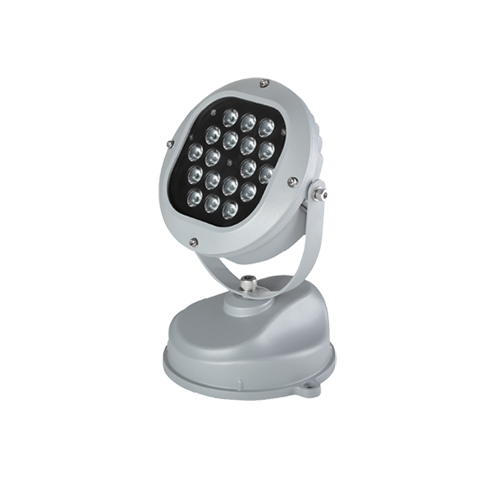

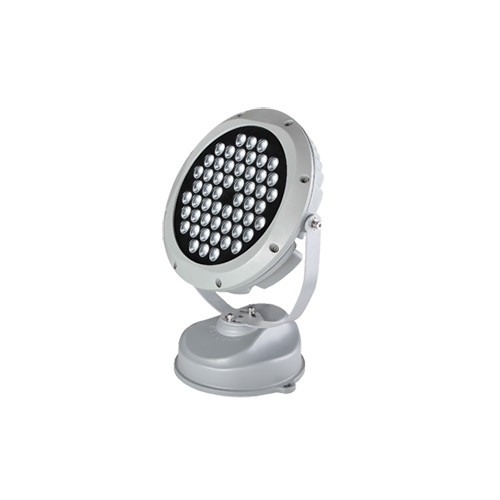

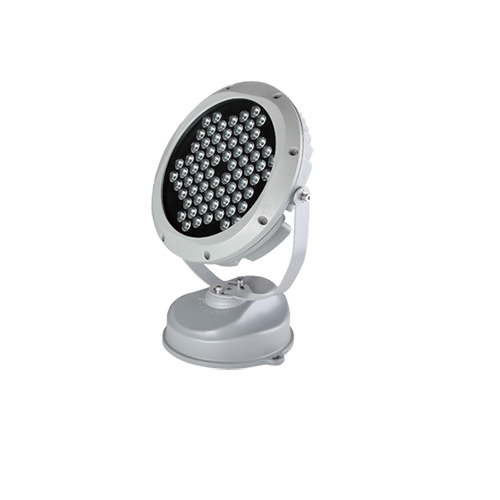

LED Flood Lights 527212
LED Flood Lights
a.Independent intellectual property design,modern fashion design of appearance,made the light become an artwork,integrated with the environment perfectly,to made is as top project.
b.Main material used in high strength aluminum die casting material,surface anti-ageing electrostatic spray processing,super resistance to corrosion.
c.Toughened glass cover,high strength impact resistance.
d.Configurable white or monochromatic RGB,lighting effects gorgeous color purity and powerful change.
Description
Applications of the occasion.
For outdoor lighting, such as architecture ,industrial area, factory, gym, garden, sea port and so on.
Features:
a.Color:Single/RGB.
b.Input voltage(V):AC100-277.
c.Frequency range:50/60Hz.
d.Control mode:CC/DMX512.
e.Beam angle:10° 25° 40° 60° 25×60°
f.Working temperature:-35 to 50C.
g.LED Lifetime:70,000hours.
h.IP66.
| ORDER NO. | 527212A | 527212B | 527212C | 527212D | 527212E | 527212F | 527212G | 527212H |
| LED QTY | 72PCS | 72PCS | 54PCS | 54PCS | 36PCS | 36PCS | 18PCS | 18PCS |
| RATED POWER | 89W | 113W | 67W | 86W | 45W | 66W | 23W | 30W |
| LUMINOUS FLUX | 6878/3263LM | 8391/3980LM | 4968/2457LM | 6061/2997LM | 3272/1649LM | 4317/2176LM | 1687/871LM | 2057/1062LM |
| N.W | 6.861KGS | 6.861KGS | 6.861KGS | 6.861KGS | 3.5KGS | 3.5KGS | 2.8KGS | 2.8KGS |
| G.W | 7.61KGS | 7.61KGS | 7.61KGS | 7.61KGS | 4.1KGS | 4.1KGS | 3.4KGS | 3.4KGS |
| DIMENSION(MM) | 445*305*555 | 445*305*555 | 445*305*555 | 445*305*555 | 300*255*445 | 300*255*445 | 255*250*395 | 255*250*395 |
