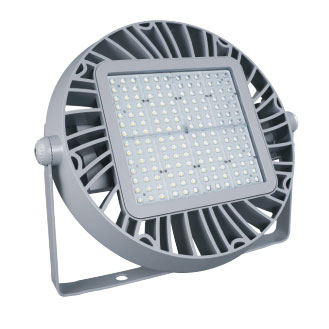

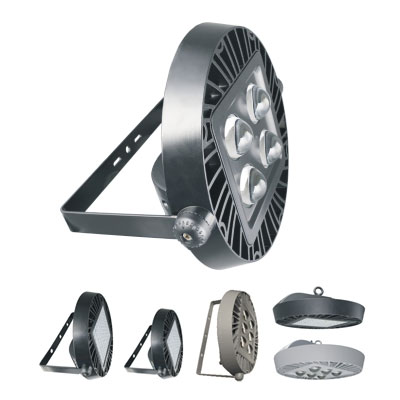

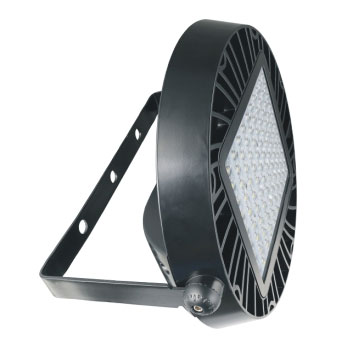

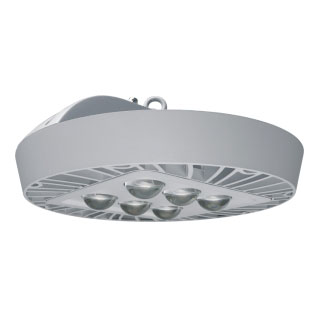

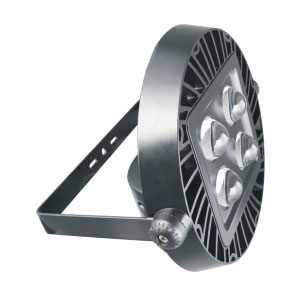

LED Flood lights 527109
COB/SMD LED flood lights
a.Original raw aluminum material to make the casings. Die-casing aluminum alloy for the casing. With high-strength tempered glass, and also high pure alloy reflector cover. Which make the lamp heavy and not easy to break.
b.Bridgelux light source
c.Meanwell driver or other.
d.Dialux simulation available
e.CE, PSE,ROHS
Description
a.Die-casting aluminum hosingand high intensity toughened glass over.
b.Black / Silver grey/ White for normal color . And also other colors can be avail-able as for custom color.
c.Fullyy seald with IP65 standard.
d.Epistar / Bridgelux LED chip used.
e.2 year warranty for normal.
f. Beam Angle: 120
g.85-264V AC
Applications of the occasion.
For outdoor lighting, such as architecture ,industrial area, factory, gym, garden, sea port and so on.
| Order No. | Color Temperature | Luminous Flux | LED Power | Dimension |
| 527109-C100 | WW / NW / CW | 9000/7800 LM | COB 120W | 458x409x253 mm |
| 527109-C300 | WW / NW / CW | 22500/19500 LM | COB 300W | 588x538x321 mm |
| 527109-S100 | WW / NW / CW | 9000 LM | SMD 120W | 458x409x253 mm |
| 527109-S300 | WW / NW / CW | 22500 LM | SMD 300W | 588x538x321 mm |
