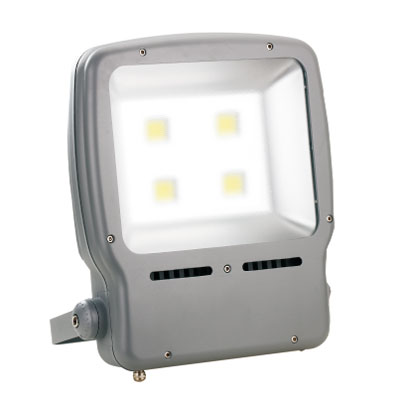

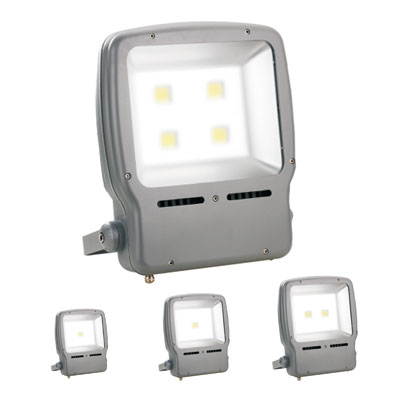

LED Flood lights 527105
COB LED flood lights
a.Original raw aluminum material to make the casings. Die-casing aluminum alloy for the casing. With high-strength tempered glass, and also high pure alloy reflector cover. Which make the lamp heavy and not easy to break.
b.Bridgelux light source
c.Meanwell driver or other.
d.Dialux simulation available
e.SAA,CE, PSE,ROHS
Description
a.Original raw aluminum material to make the casings. Die-casing aluminum alloy for the casing. With high-strength tempered glass, and also high pure al-loy reflector cover. Which make the lamp heavy and not easy to break.
b.Black / Silver grey/ White for normal color . And also other colors can be avail-able as for custom color.
c.IP65
d.Epistar / Bridgelux LED chip used.
e.2 year warranty for normal.
f. Beam Angle: 120
g.100-240V AC
h.CRI: 75
Applications of the occasion.
For outdoor lighting, such as architecture ,industrial area, factory, gym, garden, sea port and so on.
| Order No. | Color Temperature | Luminous Flux | LED Power | Dimension |
| 527105-W10 | WW / NW / CW | 700 LM | 12 W | 170x150x48 mm |
| 527105-W30 | WW / NW / CW | 2100 LM | 30 W | 206x176x66 mm |
| 527105-W50 | WW / NW / CW | 3500 LM | 50 W | 310x250x93 mm |
| 527105-W80 | WW / NW / CW | 5600 LM | 80 W | 310x250x93 mm |
| 527105-W100 | WW / NW / CW | 7000 LM | 100 W | 310x250x93 mm |
| 527105-W120 | WW / NW / CW | 8400 LM | 120 W | 390x338x113 mm |
| 527105-W200 | WW / NW / CW | 14000 LM | 200 W | 482x428x144 mm |
