LED Flood lights 527101
Module LED Flood Lights
a. Unlike traditional LED flood light which the heat sinker in on the back of the lamp, this new item using special fin type heat sinker, making the lamp lighter and better in heat dissipation.
b. Using 120-130lm/w Philips rebel es
c. High quality Meanwell driver.
d. offer dialux design.
e. DLC,CE,MON,UL,PSEM
Description
Features:

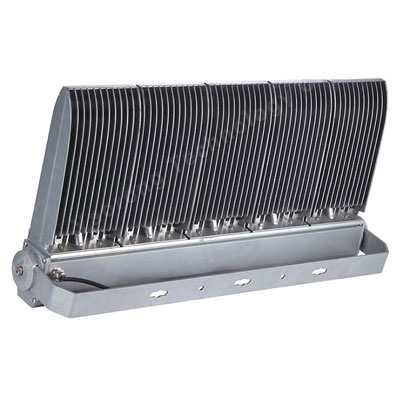

a.Unlike traditional LED flood light which the heat sinker in on the back of the lamp, this new item using special fin type heat sinker, making the lamp lighter and better in heat dissipation.
b.The place for installing the LED driver is unique and put aside from the heat sinker, not upon the heat sinker. Which makes the LED driver be in lower heat working environment, keeping the lamp with longer life span.
c.IP67.
d.Beauty of appearance, using Philip LED more than 120 LM/W.
e.Using Mean well LED driver, guarantee 3 years.
f. LED Philips Rebel
g. Storge Temperature: -40 to 50 C.
h. Input Voltage Range: 100-277V AC.
i. Beam Angle: 10/30/60/135/85*135 for different model.
j. CCT: 5000-5650K.
K.Ra >=70
Applications of the occasion.
For outdoor lighting, such as architecture ,industrial area, factory, gym, garden, sea port and so on.
| Order No. | Lumens | Consume Power | Dimension | Carton | Net Weight | Gross Weight |
| 527101-39-W100 | 10800 | 110 /- 5W | 390x299x98 mm | 520x387x165 mm | 7.9 kg | 8.9 kg |
| 527101-39-W120 | 11500 | 130 /- 6W | 390x299x98 mm | 520x387x165 mm | 7. 96kg | 8.98 kg |
| 527101-39-W140 | 15500 | 165 /- 10W | 390x299x98 mm | 520x387x165 mm | 11.0 kg | 12.4 kg |
| 527101-39-W180 | 19200 | 200 /- 6W | 390x451x98 mm | 520x539x165 mm | 11.3 kg | 12.7 kg |
| 527101-39-W200 | 21000 | 216 /- 6W | 390x451x98 mm | 520x539x165 mm | 12.5 kg | 12.9 kg |
| 527101-39-W240 | 22500 | 260 /- 6W | 390x603x98 mm | 520x691x165 mm | 15 kg | 16.4 kg |
| 527101-39-W280 | 25500 | 300 /- 6W | 390x603x98 mm | 520x691x165 mm | 15.4 kg | 16.7 kg |
| 527101-39-W310 | 31000 | 300 /- 10W | 390x754x98 mm | 520x843x165 mm | 18.1 kg | 20 kg |
| 527101-39-W360 | 36500 | 390 /- 10W | 390x754x98 mm | 520x843x165 mm | 18.5 kg | 21.2 kg |
| 527101-33-W80 | 7950 | 88 /- 6W | 333x247x66 mm | 432x330x548 mm/4pcs | 4.6 kg | 5.2 kg |
| 527101-33-W100 | 10250 | 110 /- 5W | 333x247x66 mm | 432x330x548 mm/4pcs | 4.7 kg | 5.6 kg |
| 527101-28-W50 | 5000 | 57 /- 3W | 287x203x62 mm | 399x550x436 mm/8pcs | 3.2 kg | 3.6 kg |
| 527101-22-W20 | 1900 | 23 /- 2W | 220x173x50 mm | 313x405x472 mm/10 pcs | 1.5 kg | 1.7 kg |
| 527101-22-W30 | 3000 | 34 /- 2W | 220x173x50 mm | 313x405x472 mm/10 pcs | 1.59 kg | 1.76 kg |
| 527101-14-W10 | 850 | 12 /- 1W | 144x152x46 mm | 295x360x430 mm/10 pcs | 0.72 kg | 0.78 kg |
