Halophosphate Fluorescent Tube 716102

Description

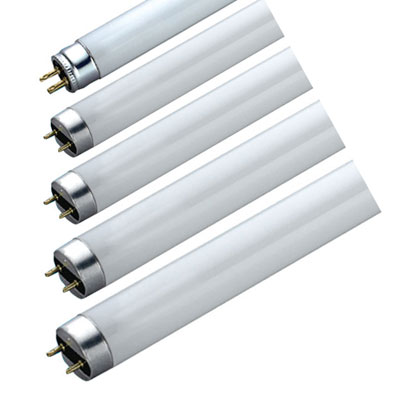

standard halophosphate fluorescent tube
Using high-efficient halophosphate powder,small color difference and high high lighting effect.
Warmwhite, coolwhite and daylight which can suitable for different color temperature requirement.
Additional cathode protection ring at two ends of the tube, which prevents the tube from black.
Advanced water-power coating technique, which increase efficiency of light and reduces light attenuation
Using triple wire filament to ensure sufficient electron power and prolong service life.

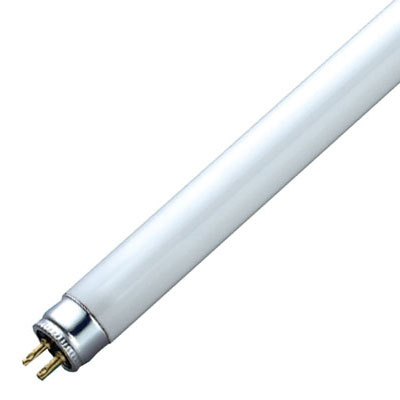

T5 mini halophosphate fluorescent tube:

Order no.	A/C/D max mm	Current (A)	Voltage (V)	Luminous (lm)	Life (h)	Socket	Photo
716102-T5M-4W-2700K/4000K/6500K	135.9/150.1/16	0.17	29	195/190/180	12000	G5
716102-T5M-6W-2700K/4000K/6500K	212.1/226.3/16	0.16	42	310/300/280	12000	G5
716102-T5M-8W-2700K/4000K/6500K	288.3/302.5/16	0.145	56	430/420/400	12000	G5
716102-T5M-13W-2700K/4000K/6500K	516.9/531.5/16	0.165	95	920/840/750	12000	G5

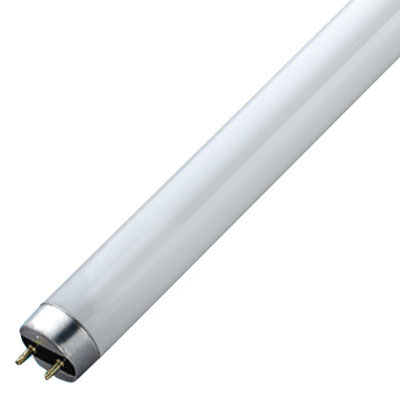

T8 halophosphate fluorescent tube:

Order no.	A/C/D max mm	Current (A)	Voltage (V)	Luminous (lm)	Life (h)	Socket	Photo
716102-T8-10W-2700K/4000K/6500K	331.3/345.5/26	0.22	52	310/290/280	13000	G13
716102-T8-15W-2700K/4000K/6500K	437.4/451.6/26	0.31	55	630/610/560	13000	G13
716102-T8-18W-2700K/4000K/6500K	589.8/604.0/26	0.37	57	1150/1110/960	13000	G13
716102-T8-30W-2700K/4000K/6500K	894.6/908.8/26	0.365	96	2100/2025/1720	13000	G13
716102-T8-36W-2700K/4000K/6500K	1199.4/1213.6/26	0.43	103	2760/2650/2400	13000	G13
716102-T8-58W-2700K/4000K/6500K	1500.0/1514.2/26	0.67	110	4500/4250/4080	13000	G13

T9 halophosphate fluorescent tube:

Order no.	A/C/D max mm	Current (A)	Voltage (V)	Luminous (lm)	Life (h)	Socket	Photo
716102-T9-20W-2700K/4000K/6500K	598.8/604/31	0.37	60	1150/1110/960	13000	G13
716102-T9-30W-2700K/4000K/6500K	894.6/908.8/31	0.41	80	2100/2025/1720	13000	G13
716102-T9-40W-2700K/4000K/6500K	1199.4/1213.6/31	0.43	110	2760/2650/2400	13000	G13

T10 halophosphate fluorescent tube:

Order no.	A/C/D max mm	Current (A)	Voltage (V)	Luminous (lm)	Life (h)	Socket	Photo
716102-T10-20W-2700K/4000K/6500K	598.8/604/34	0.37	60	1150/1110/960	13000	G13
716102-T10-30W-2700K/4000K/6500K	894.6/908.8/34	0.41	80	2100/2025/1720	13000	G13
716102-T10-40W-2700K/4000K/6500K	1199.4/1213.6/34	0.43	110	2760/2650/2400	13000	G13

T12 halophosphate fluorescent tube:

Order no.	A/C/D max mm	Current (A)	Voltage (V)	Luminous (lm)	Life (h)	Socket	Photo
716102-T12-20W-2700K/4000K/6500K	598.8/604/40.5	0.37	60	1150/1110/960	13000	G13
716102-T12-30W-2700K/4000K/6500K	894.6/908.8/40.5	0.41	80	2100/2025/1720	13000	G13
716102-T12-40W-2700K/4000K/6500K	1199.4/1213.6/40.5	0.43	110	2760/2650/2400	13000	G13
