H Terminal Blocks-823101

H terminal block  also named 12 poles termial blcok, total have 12pcs couple connectors, it can be cut as need  without effect install.

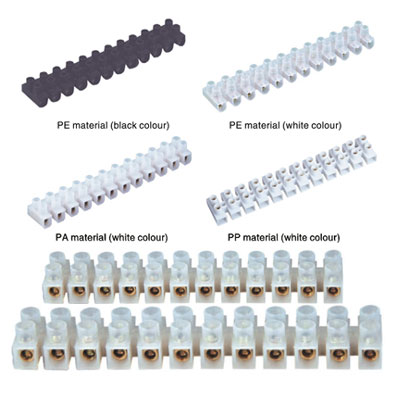

H type terminal block,
PP H type terminal block,
PA H type terminal block,
PE H type terminal block.

Material : PA, PE and PP plastic. Brass and ZN plated Iron screw.
Color: creamy white, white and black . Special colors may be customized.
Application: for connecting terminals in such devices as electric distribution box, cabinet and disc.



SKU: 823101 Category:

Description

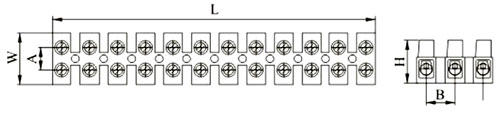

H type terminal block specification:

china H-Terminal-Blocks

Order no.   L in mm      W in mm      H in mm      MM2      Voltage V      AMP
823101-H39315.51243803A
823101-H5107151363803A
823101-H6112171463806A
823101-H101252116.51038010A
823101-H1513422181238015A
823101-H2014322191438020A
823101-H3016824211638030A
823101-H6019331242538060A
823101-H8020837 30 3038080A
823101-H100230383335380100A
823101-H15026043 34 40380150A
